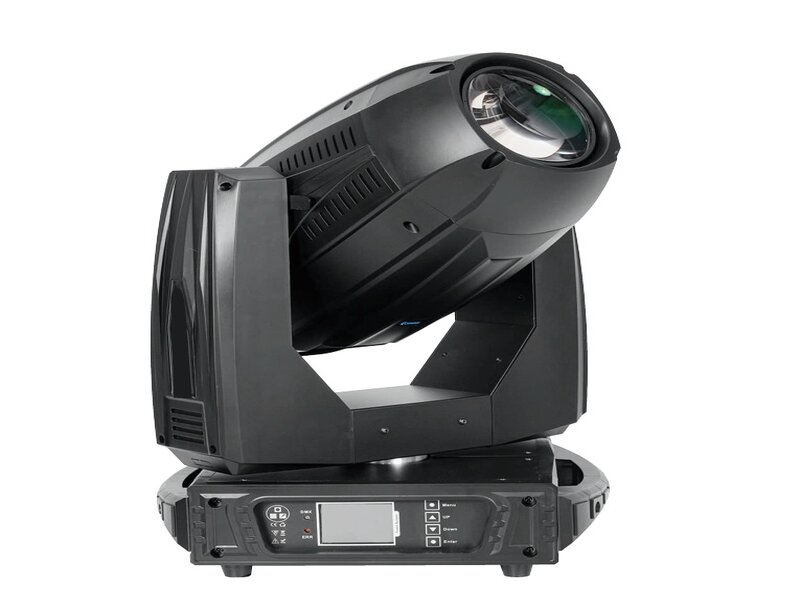

LED Moving Beam light - JH - XL- CMY440T - 600W

Send Email

Product Detail

Technical Parameters
·Power supply: AC100-240V,50/60Hz
 Input power: 600W,power factor PF>0.98
Light source: OSRAM SIRIUS HRI 380W/440W
·Beam angle: 2.5°(beam Light mode),
Zoom range:4°-50°(pattern light mode)
 Color system: with CMB color mixing system, 3 color discs, 14 color chips, 2*CTOs+1*CTB
Pattern system: 1 rotating pattern disc with 7 pattern slices and white light
Capable of achieving rotation, flowing water, and shaking effects. The pattern wheel can be positioned
·1 fixed pattern disc with 14 fixed patterns and white light
·1 effect pattern plate with 4 effect patterns and 1 water pattern effect image
.Independent atomization soft light effect
·Mechanical linear dimming 0-100%
Fast strobe, multiple strobe mode selection, pulse slow medium fast, gradient full medium fast, random slow medium fast
Prism: 1*8-sided prism,1*6-sided prism, overlapping, bi-directional rotation
·Shake head parameters: horizontal 540°,vertical 240°, accuracy 1.05°/step, fine adjustment accuracy 0.004°, automatic error correction electro-opticaI reset system
used for horizontal and vertical
.With RDM function
·Control channel: 24 channels
·DMA signal connection: three core XLR input/output
Working temperature: -10<45 degree
·Net weight:22kg
·Product size: 395 X303x645mm
Gross weight: 25kg
·Protection level: IP20
