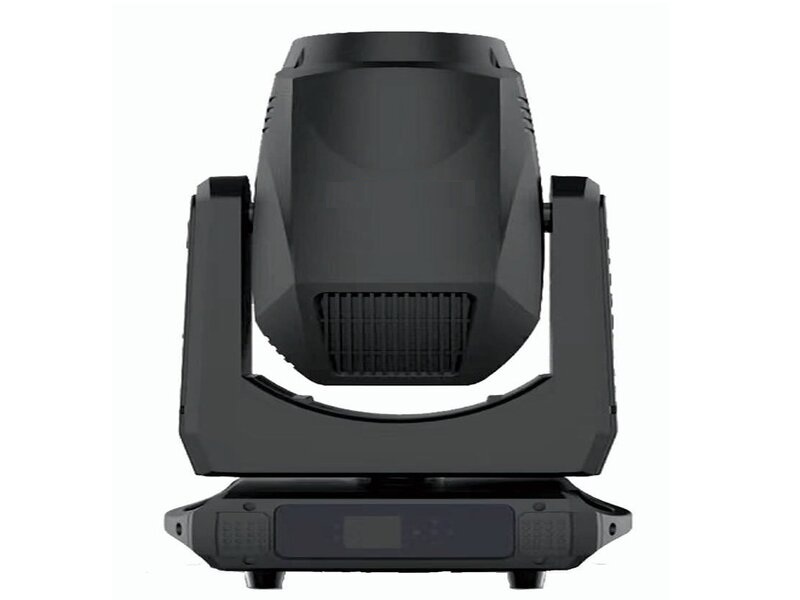

LED Moving Gobo light - JH - XL- MINI380S - 600W

Send Email

Product Detail

Technical Paraneters
Power supply: AC100-240V,50/60Hz
Input power: 600W,power factor PF>0.98
Light source: OSRAM SIRIUS HRI 380W
Light emitting angle: BEAM:0°-2.2°
SPOT:1.6°-15°
 WASH:4°-33°
·Color system: 11 colors+white, color flow, color rainbow can be realized
·Gobo system: 1 rotating gobo plate  with 7 gobos+white light
.It can realize the effects of rotation, water flow and jitter
·Gobo wheel can be positioned
·1 fixed pattern plate with 14 fixed patterns+ white light
· effect plate, with 4 effect patterns +1 water ripple effect picture
Independent fog soft light effect
Mechanical linear dimming 0~100%
Fast stroboscopic, multiple stroboscopic mode options, pulse slow to medium fast, gradual change to full medium fast, random slow medium to fast
Prism: 1*8-sided prism, 1*24-sided prism, can be over lapped, and can be rotated in both directions
·Moving head parameters: horizontal 540°, vertical 240°,accuracy 1.05°/step, fine-tuning accuracy,horizontal and verticaluse automatic error 0.004°
correction electro-optical reset system
Control channel:17 (standard)/24 (extended).two DMX signal connection: three-pin XLR input/output
·Working temperature:-10°~45°
·Net weight:22kg
·Product size: 395×303×645mm
·Gross weight: 25kg
·Protection level: lP20
