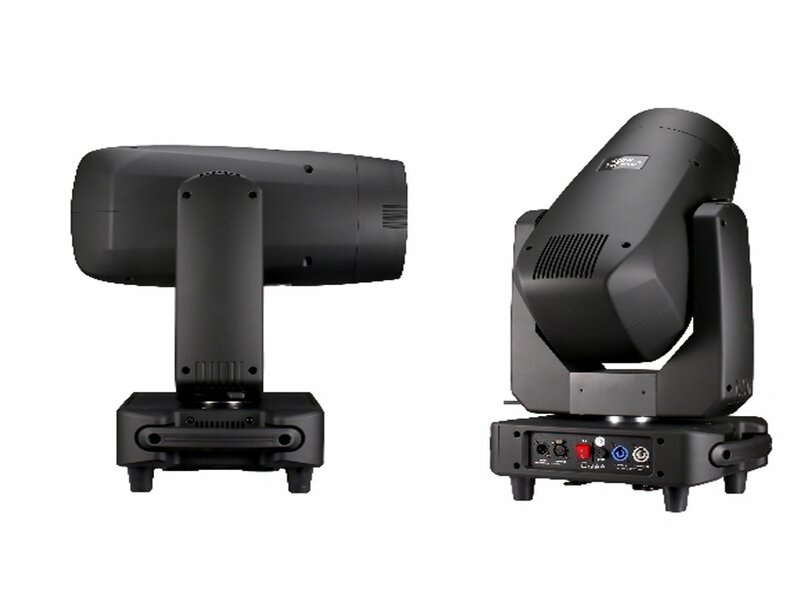

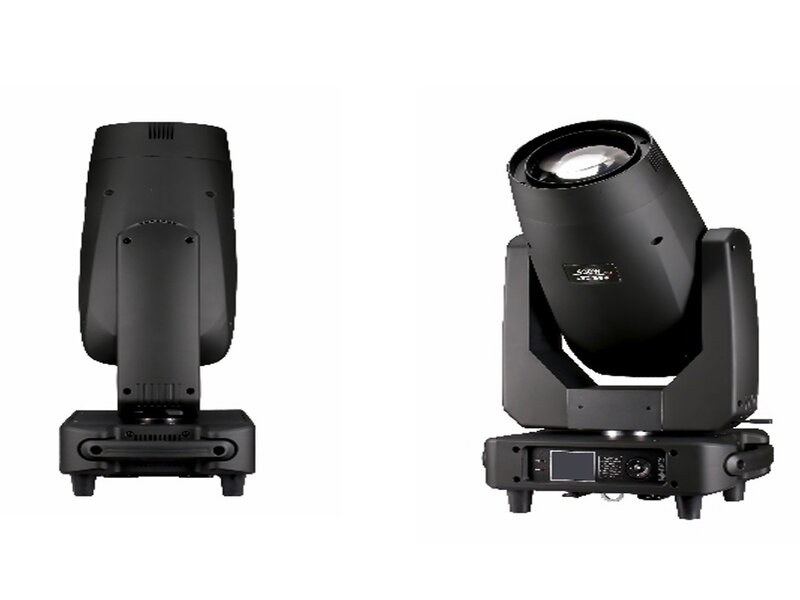

LED Moving Gobo light - JH - GY- S400-1 - 430W
Product Detail
400W BSW Moving Head Light with CMY
Technical parameters
POWER SUPPLY Input voltage: AC110V-240V/50-60HZ Power consumption: 430W
LIGHT SOURCE Light source specification: Imported new LED Module engine 400W
Light source life: 50000 hours Color temperature: 8000K CRI>95 OPTICS
Dimming system: 0-100% linear adjustment Focusing system: linear adjustment from 4 meters to 50 meters
Frost: 1 independent frost filter, soft and natural light spot Spot zoom angle: 4-35 degrees
Wash angle:10-50 degrees High-speed strobe: 0-30 times/sec.
Adjustable speed strobe effect. Strobe macro function. CONTROL AND PROGRAMMING
Channel mode: 23 、21channels Display mode: LCD display, key + touch dual operation mode
Control signal: International standard DMX512.
With RDM function, online software upgrade is available, dial address code EFFEC SECTION
Color: 8 colors + open. Color half-color function
Color mixing system: linear CMY+CTO color mixing system Fixed gobos: 12 fixed patterns + open
Rotating gobos: 7 glass patterns, each glass pattern can be independently forward and reverse
Prism system: standard single 6-facet prism and 8 prism, each prism can be independently forward and reverse
Macro function: console reset function, self-propelled mode, master-slave mode MOVING BODY
Horizontal scan: 540 degrees (16bit precision scan) electronic error correction
Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction
Cooling method: Adopt axial fan to enhance cooling
Safety device: with electronic temperature control overheating protection,electronic temperature control
automatic power-off protection when the overheating system fails
Appearance material: high temperature resistant plastic
Working environment: -20 degrees - 40 degrees
Protection level: IP20 WEIGHT&DIMENSION
N.W:26KG G.W:28KG Packing size: 49*41*77cm
