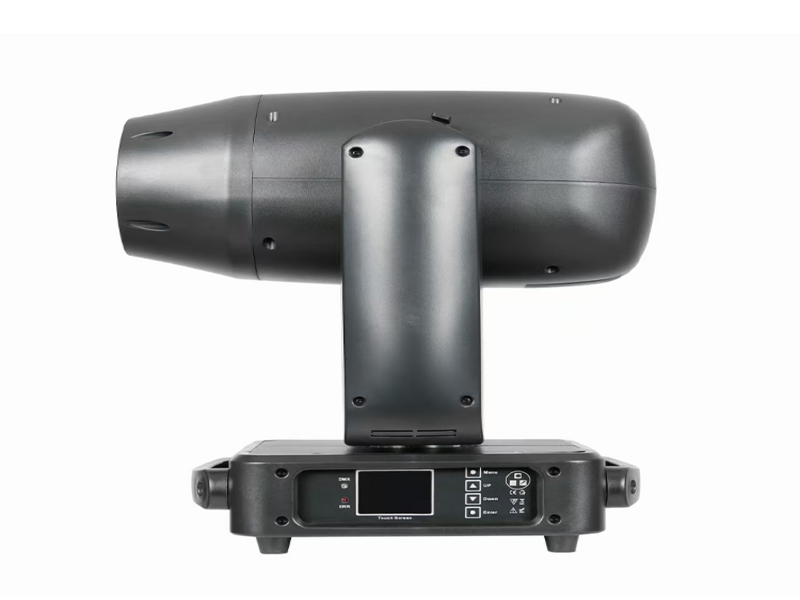

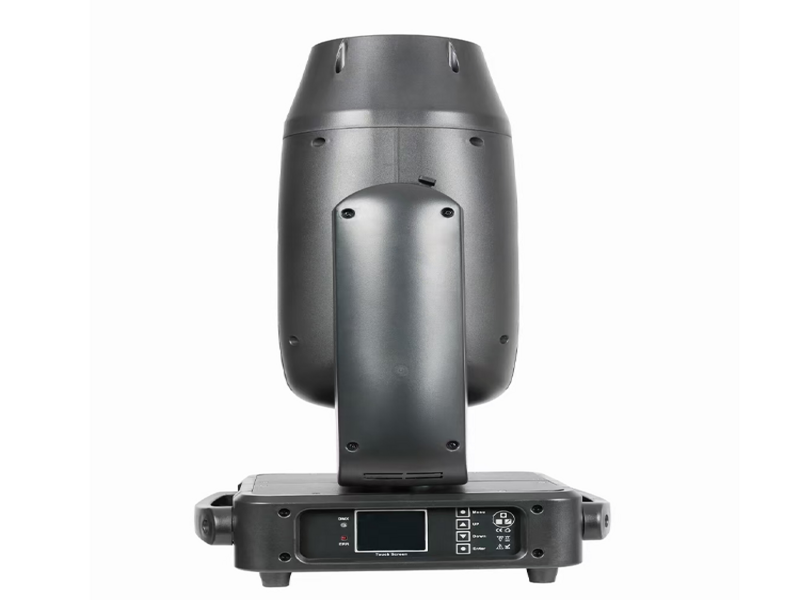

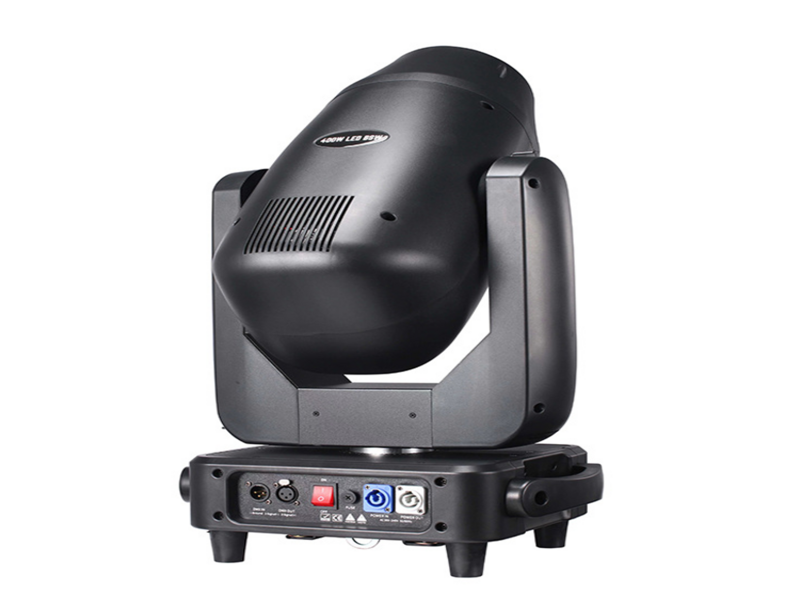

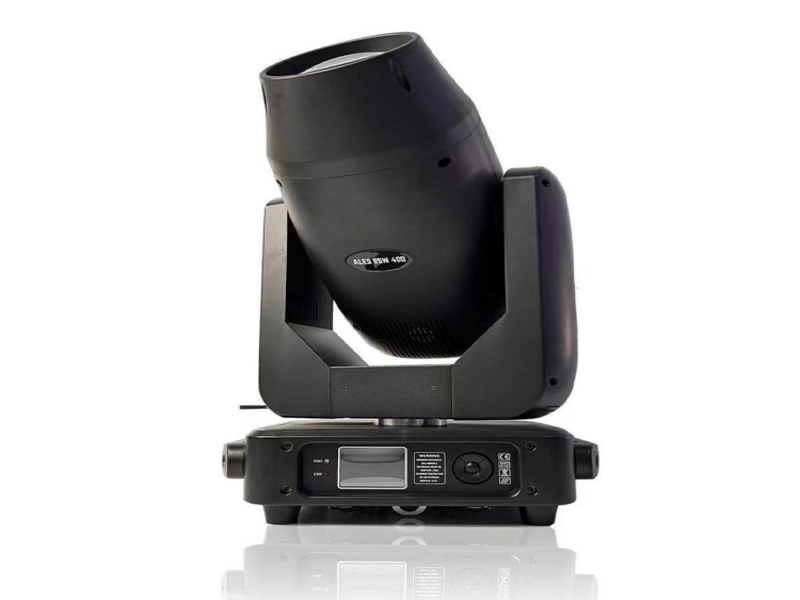

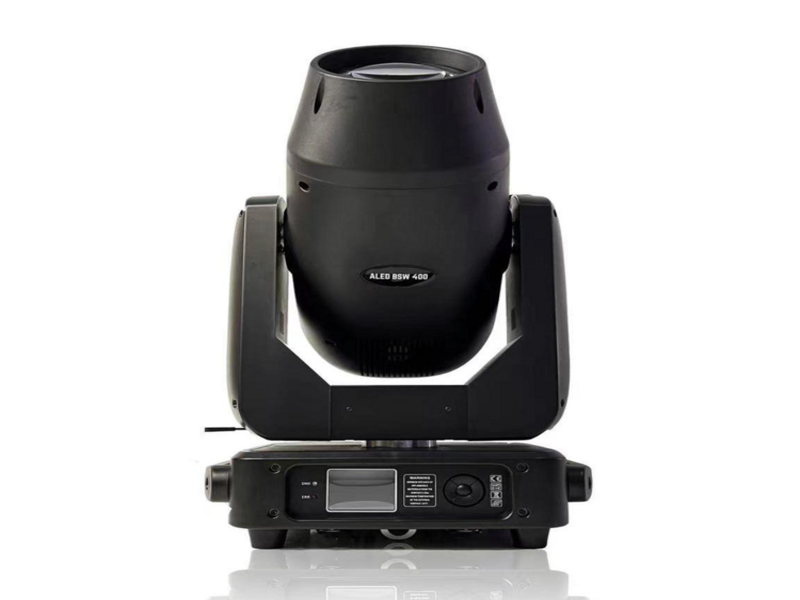

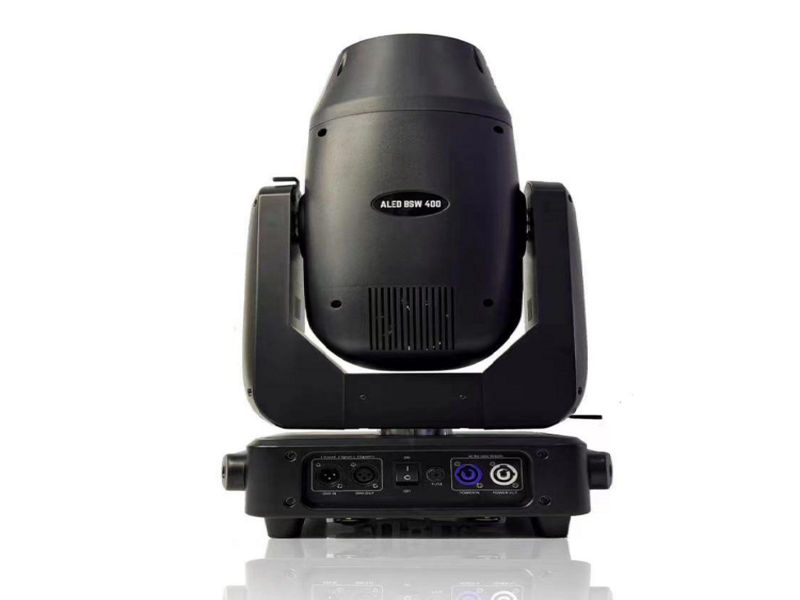

LED Moving Beam light - JH - XL- BSW500 - 500W
Product Detail
Technical Specifications
Rated Voltage: AC 100V～240V, 50/60Hz
Total Power: 500W
Light Source: 400W LED
Lifespan: Approximately 20,000 hours
Color Temperature: 9000K
Illumination: 120,000 LUX at 5 meters
Protection Rating: IP20
Color System
Color Wheel: 8 colors + white, full color/half color/linear color switching
Rainbow Effect: Bidirectional, with variable speed
Color Mixing System: Linear CMY + CTO, with built-in Hall sensor
Gobo System
Fixed Gobo Wheel: 1 wheel with 12 fixed gobos + white, bidirectional with variable speed rotation
Rotating Gobo Wheel: 1 wheel with 7 glass gobos (6 custom rotating gobos + 1 water pattern), each gobo can rotate independently in both directions
Prism System
Prism Configuration: 1 eight-facet prism + 1 six-line prism, can be overlapped
Effect: Independent forward and reverse rotation, bidirectional variable speed, indexable with variable-speed shaking effect
Effect System
Frost Effect: Independent frost, smooth and natural beam
Soft Light: 1 soft light filter, linear dimming from 0–100%
Zoom System: Electronic focus, DMX linear focus, with auto-focus function (angle-based)
Zoom Range: Linear zoom, 4°–35°, high-precision glass optical lens
Strobe: High-speed strobe from 0 to 30 times per second, adjustable strobe effects
Dimming: Electronic dimming, linear adjustment from 0–100%
Control & Operation
Display: LED display with button + touch operation
Pan: 540° (16-bit precision with electronic correction)
Tilt: 270° (16-bit precision with electronic correction)
Channels: 20/24CH
Control Protocol: International standard DMX512, RDM-enabled, supports online upgrade and dial address code
Physical Specifications
Dimensions: 38 x 27 x 65 cm (L x W x H)
Weight: 22.5 Kg
